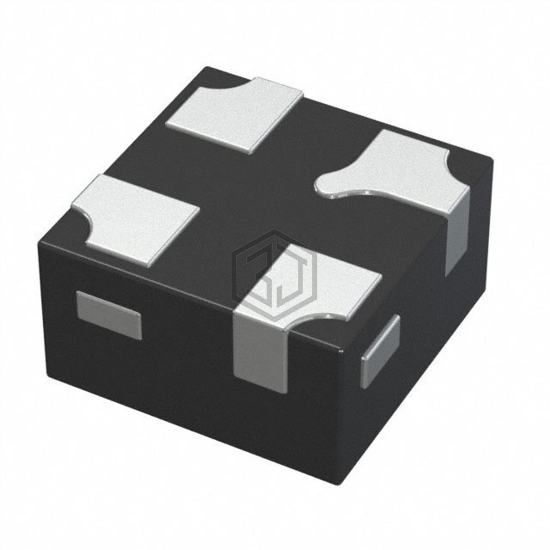

IC INVERT SCHMITT 1CH 1IN 4X2SON
74LVC1G14GX4Z is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 1CH 1IN 4X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN.
In Stock: 3,104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.1V ~ 0.8V |
| Logic Level - High | 0.95V ~ 3.4V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-X2SON (0.6x0.6) |
| Package / Case | 4-XFDFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G14QDCKRQ1 | Texas Instruments | IC INVERT SCHMITT 1CH 1IN SC70 | 83% | View |
| SN74LVC1GU04DSFR | Texas Instruments | IC INVERTER 1CH 1-INP 6SON | 81% | View |
| 74LVC1G04GW-Q100H | Nexperia USA Inc. | IC INVERTER 1CH 1-INP 5TSSOP | 78% | View |
| SN74LVC1G04DRYR | Texas Instruments | IC INVERTER 1CH 1-INP 6SON | 72% | View |
| 74LVC3G14DP,125 | Nexperia USA Inc. | IC INVERT SCHMITT 3CH 3IN 8TSSOP | 71% | View |
| SN74LVC2G14DBVR | Texas Instruments | IC INVERTER 2CH 2-INP SOT23-6 | 70% | View |
Submit your RFQ for 74LVC1G14GX4Z and get a quote within 24 hours.
