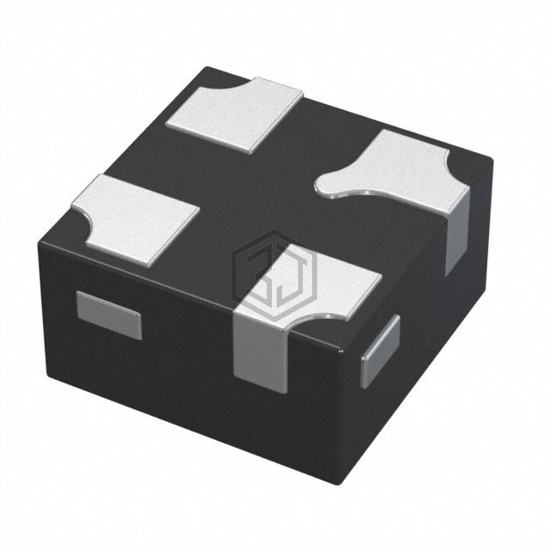

74LVC1G14-Q100 - SINGLE SCHMITT
74LVC1G14GX4-Q100Z is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. 74LVC1G14-Q100 - SINGLE SCHMITT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN.
In Stock: 5,007
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.78V ~ 2.27V |
| Logic Level - High | 1.14V ~ 2.79V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-X2SON (0.6x0.6) |
| Package / Case | 4-XFDFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC1G04GM,115 | Nexperia USA Inc. | IC INVERTER 1CH 1-INP 6XSON | 88% | View |
| 74LVC1GU04GN,132 | NXP USA Inc. | IC INVERTER 1CH 1-INP 6XSON | 85% | View |
| SN74LVC1G04DPWR | Texas Instruments | IC INVERTER 1CH 1-INP 4XDFN | 82% | View |
| SN74LVC1GU04YZPR | Texas Instruments | IC INVERTER 1CH 1-INP 5DSBGA | 78% | View |
| 74LVC2G14GM,132 | Nexperia USA Inc. | IC INVERT SCHMITT 2CH 2-IN 6XSON | 76% | View |
| SN74LVC2G14YZPR | Texas Instruments | IC INVERT SCHMITT 2CH 2IN 6DSBGA | 72% | View |
Submit your RFQ for 74LVC1G14GX4-Q100Z and get a quote within 24 hours.
