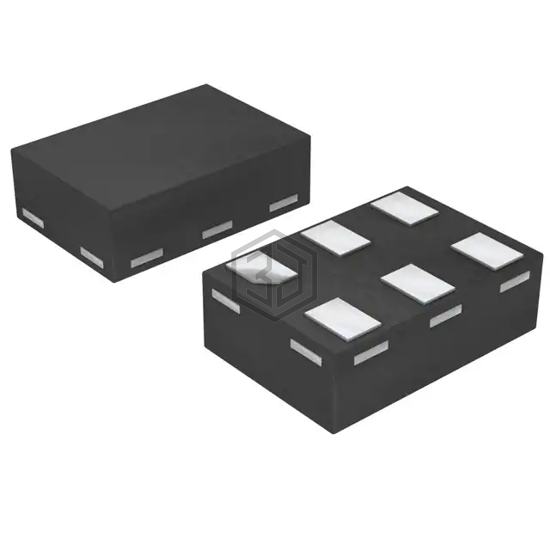

IC INVERT SCHMITT 1CH 1-IN 6XSON
74LVC1G14GM-Q100X is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 1CH 1-IN 6XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFDFN.
In Stock: 4,093
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.78V ~ 2.27V |
| Logic Level - High | 1.14V ~ 2.79V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-XSON, SOT886 (1.45x1) |
| Package / Case | 6-XFDFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLV17SZ04DFT2G | onsemi | IC INVERTER 1CH 1-INP SC88A | 81% | View |
| 74LVC2G04GS-Q100H | Nexperia USA Inc. | IC INVERTER 2CH 2-INP 6XSON | 80% | View |
| 74LVC2G04FW4-7 | Diodes Incorporated | IC INVERTER 2CH 2-INP DFN1010-6 | 72% | View |
| SN74LVC2G14DBVT | Texas Instruments | IC INVERTER 2CH 2-INP SOT23-6 | 72% | View |
| SN74LVC2G04YZPR | Texas Instruments | IC INVERTER 2CH 2-INP 6DSBGA | 72% | View |
| NL27WZ04DTT1 | onsemi | IC INVERTER DUAL TTL HP 6TSOP | 72% | View |
Submit your RFQ for 74LVC1G14GM-Q100X and get a quote within 24 hours.
