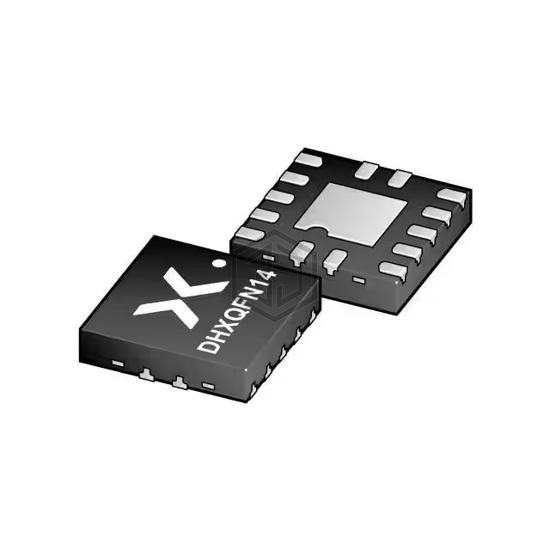

74LVC14ABZ/SOT8014/DHXQFN14
74LVC14ABZZ is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. 74LVC14ABZ/SOT8014/DHXQFN14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 3.6V, package / case 14-XFQFN Exposed Pad.
In Stock: 7,413
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 40 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.75V ~ 1.5V |
| Logic Level - High | 1V ~ 2V |
| Max Propagation Delay @ V, Max CL | 8ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DHXQFN (2x2) |
| Package / Case | 14-XFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC14AD,118 | Nexperia USA Inc. | IC INVERT SCHMITT 6CH 1-INP 14SO | 85% | View |
| 74LVC14AD,112 | Nexperia USA Inc. | IC INVERT SCHMITT 6CH 1-INP 14SO | 85% | View |
| NLV74AC14DR2G | onsemi | IC INVERTER 6CH 1-INP 14SOIC | 82% | View |
| MC74LCX04DT | onsemi | IC INVERTER 6CH 1-INP 14TSSOP | 80% | View |
| 74LVC04ABQ,115 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14DHVQFN | 79% | View |
| SN74LVC04ADT | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 77% | View |
Submit your RFQ for 74LVC14ABZZ and get a quote within 24 hours.
