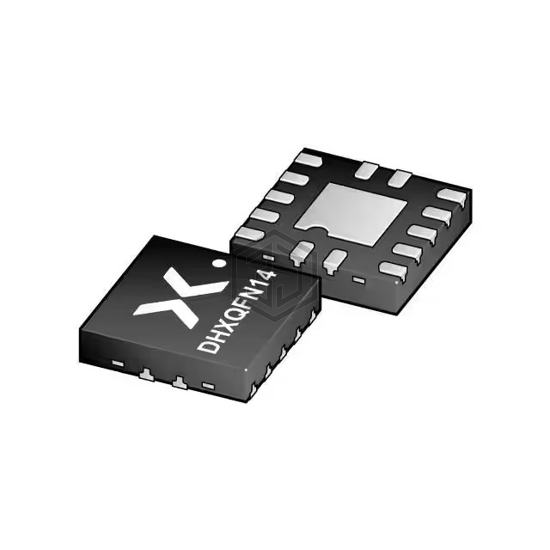

74LV14ABZ/SOT8014/DHXQFN14
74LV14ABZZ is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. 74LV14ABZ/SOT8014/DHXQFN14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 14-XFQFN Exposed Pad.
In Stock: 2,223
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 12mA, 12mA |
| Logic Level - Low | 0.75V ~ 1.5V |
| Logic Level - High | 1.75V ~ 3.5V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DHXQFN (2x2) |
| Package / Case | 14-XFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LV14APW | Texas Instruments | IC INVERTER 6CH 1-INP 14TSSOP | 90% | View |
| SN74LV14ARGYR | Texas Instruments | IC INV SCHMITT 6CH 1-IN 14VQFN | 90% | View |
| 74LV14APWJ | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 90% | View |
| SN74LV14ANSRG4 | Texas Instruments | IC INVERT SCHMITT 6CH 1-IN 14SOP | 90% | View |
| 74LV14D,112 | Nexperia USA Inc. | IC INVERT SCHMITT 6CH 1-INP 14SO | 73% | View |
| 74LV14PW/AUJ | NXP USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 70% | View |
Submit your RFQ for 74LV14ABZZ and get a quote within 24 hours.
