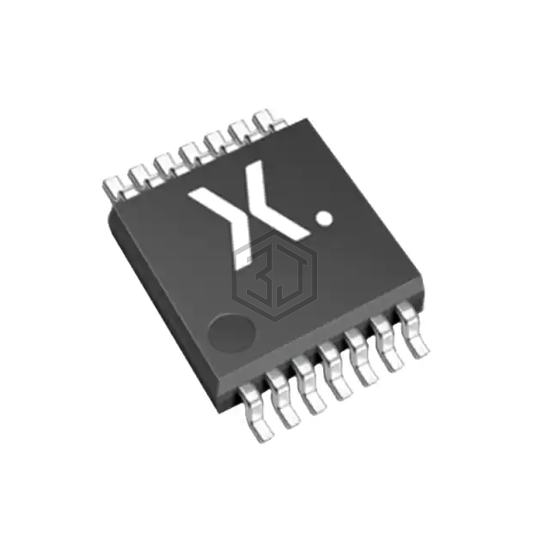

IC GATE NAND 4CH 2INP 14TSSOP
74LV00APWJ is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 4CH 2INP 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 14-TSSOP (0.173", 4.40mm Width).
In Stock: 2,247
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 12mA, 12mA |
| Logic Level - Low | 0.1V ~ 0.55V |
| Logic Level - High | 1.9V ~ 3.8V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LV00AS14-13 | Diodes Incorporated | IC GATE NAND 4CH 2-INP 14SO | 79% | View |
| 74LV00AT14-13 | Diodes Incorporated | IC GATE NAND 4CH 2-INP 14TSSOP | 79% | View |
| 74LV132AS14-13 | Diodes Incorporated | IC GATE NAND SCHMIT 4CH 2IN 14SO | 75% | View |
| 74LV132DB,118 | NXP USA Inc. | NAND GATE, LV/LV-A/LVX/H SERIES, | 74% | View |
| 74LV132D,118 | Nexperia USA Inc. | IC GATE NAND SCHMIT 4CH 2IN 14SO | 74% | View |
| 74LV132BQ-Q100X | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14DHVQFN | 74% | View |
