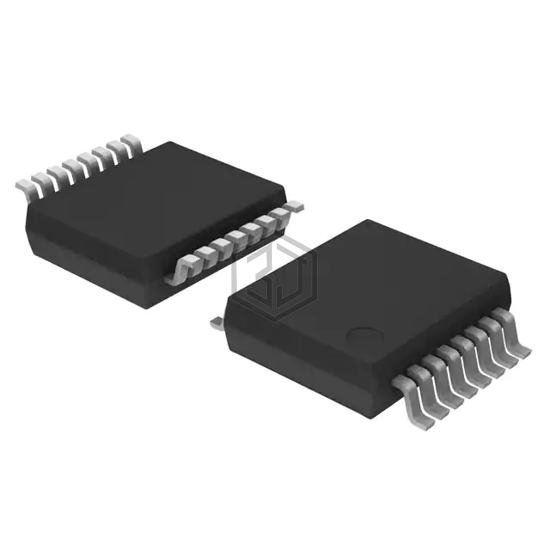

IC SWITCH QUAD 1X1 16SSOP
74HCT4316DB,112 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH QUAD 1X1 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-SSOP (0.209", 5.30mm Width), number of circuits 4.
In Stock: 9,749
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 135Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±1V ~ 5V |
| Switch Time (Ton, Toff) (Max) | 42ns, 34ns |
| -3db Bandwidth | 160MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
74HCT4316DB,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT4316D,112 | NXP USA Inc. | NOW NEXPERIA 74HCT4316D - SPST, | 100% | View |
| 74HCT4316PW,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 16TSSOP | 100% | View |
| 74HCT4316D,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 16SOIC | 100% | View |
| 74HCT4066PW-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX 16CH ANLG 14TSSOP | 80% | View |
| 74HCT4066D-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX 16CH ANLG 14SOIC | 80% | View |
| 74HCT4066BQ-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX 16CH ANLG 14DHVQFN | 80% | View |
Submit your RFQ for 74HCT4316DB,112 and get a quote within 24 hours.
