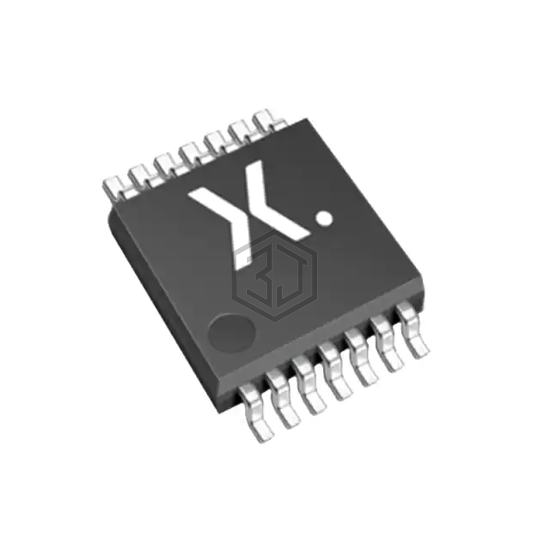

IC SWITCH QUAD 1X1 14TSSOP
74HCT4066PW,118 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH QUAD 1X1 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 14-TSSOP (0.173", 4.40mm Width), number of circuits 4.
In Stock: 5,143
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 20Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 44ns, 30ns |
| -3db Bandwidth | 200MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT4066BQ,115 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 14DHVQFN | 100% | View |
| 74HCT4066PW-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX 16CH ANLG 14TSSOP | 100% | View |
| 74HCT4066D-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX 16CH ANLG 14SOIC | 100% | View |
| 74HCT4066D,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 14SOIC | 100% | View |
| 74HCT4066BQ-Q100,1 | Nexperia USA Inc. | IC MUX/DEMUX 16CH ANLG 14DHVQFN | 100% | View |
| 74HCT4316PW,118 | Nexperia USA Inc. | IC SWITCH QUAD 1X1 16TSSOP | 80% | View |
Submit your RFQ for 74HCT4066PW,118 and get a quote within 24 hours.
