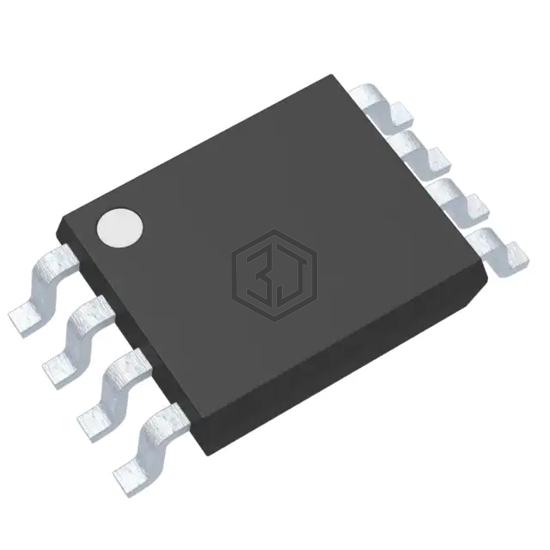

IC INVERT SCHMITT 3CH 3IN 8VSSOP
74HCT3G14DC is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 3CH 3IN 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 6,257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 4mA, 4mA |
| Logic Level - Low | 0.5V ~ 0.6V |
| Logic Level - High | 1.9V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 32ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT14PW/S400118 | NXP USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 84% | View |
| 74HCT14PW/C4118 | NXP USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 84% | View |
| NLV74HCT04ADTR2G | onsemi | IC INVERTER 6CH 1-INP 14TSSOP | 74% | View |
| 74AUP3G04GF/S500115 | NXP USA Inc. | IC INVERTER 3CH 3-INP 8XSON | 58% | View |
| 74AUP2G0604GW | Nexperia USA Inc. | IC INVERTER OD 2CH 2-INP SOT363 | 54% | View |
| 74AUP2G0604GM125 | NXP USA Inc. | IC INVERTER OD 2CH 2-INP 6XSON | 54% | View |
Submit your RFQ for 74HCT3G14DC and get a quote within 24 hours.
