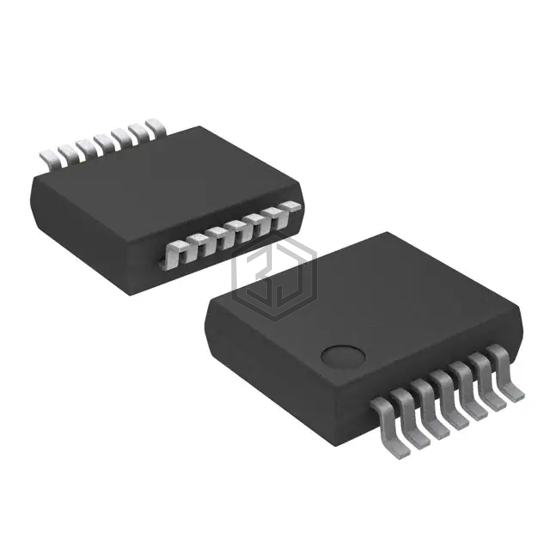

IC INV SCHMITT 6CH 1-IN 14SSOP
74HCT14DB,118 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INV SCHMITT 6CH 1-IN 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 6,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 4mA, 4mA |
| Logic Level - Low | 0.5V ~ 0.6V |
| Logic Level - High | 1.9V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 34ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
74HCT14DB,118 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT14PW-Q100,118 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 100% | View |
| 74HCT14D-Q100,118 | Nexperia USA Inc. | IC INVERT SCHMITT 6CH 1-INP 14SO | 100% | View |
| 74HCT14BQ-Q100,115 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14DHVQFN | 100% | View |
| CD74HCT14MT | Texas Instruments | IC INV SCHMITT 6CH 1-IN 14SOIC | 98% | View |
| 74HCT14T14-13 | Diodes Incorporated | IC INVERTER 6CH 1-INP 14TSSOP | 90% | View |
| 74HCT04BQ-Q100,115 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14DHVQFN | 88% | View |
Submit your RFQ for 74HCT14DB,118 and get a quote within 24 hours.
