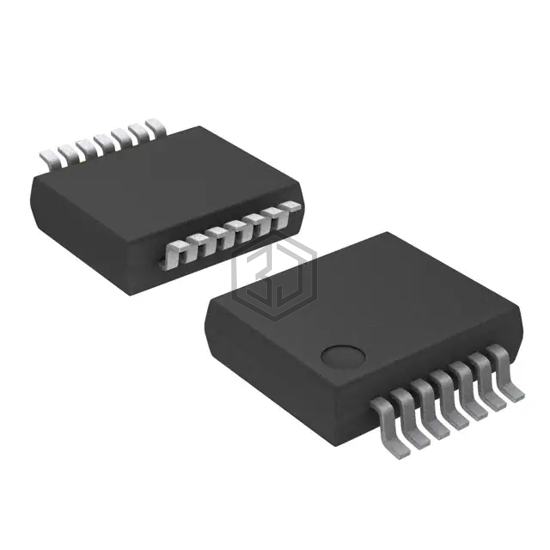

IC GATE NAND 4CH 2-INP 14SSOP
74HCT132DB,112 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 4CH 2-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 1,477
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 4mA, 4mA |
| Logic Level - Low | 0.5V ~ 0.6V |
| Logic Level - High | 1.9V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 33ns @ 4.5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
74HCT132DB,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD74HCT132M128 | Harris Corporation | IC GATE NAND 4CH 2-INP 14SOIC | 100% | View |
| CD74HCT00MR2499 | Harris Corporation | IC GATE NAND 4CH 2-INP 14SOIC | 89% | View |
| 74HCT10D/S400118 | NXP USA Inc. | IC GATE NAND 3CH 3-INP 14SO | 88% | View |
| 74HCT10D-Q100118 | NXP USA Inc. | IC GATE NAND 3CH 3-INP 14SO | 88% | View |
| NLVHCT132ADTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 86% | View |
| 74HCT30PW-Q100,118 | Nexperia USA Inc. | IC GATE NAND 1CH 8-INP 14TSSOP | 77% | View |
Submit your RFQ for 74HCT132DB,112 and get a quote within 24 hours.
