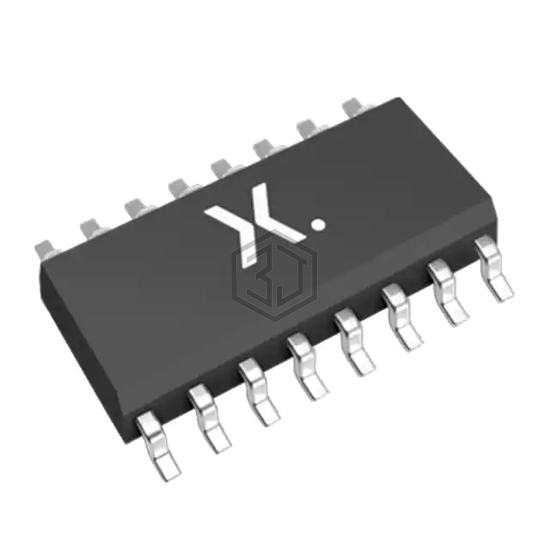

IC FF JK TYPE DUAL 1BIT 16SO
74HCT109D,652 is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF JK TYPE DUAL 1BIT 16SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 16-SOIC (0.154", 3.90mm Width).
In Stock: 8,878
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 55 MHz |
| Max Propagation Delay @ V, Max CL | 35ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 4mA, 4mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 3.5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SO |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
74HCT109D,652 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HCT109PW-Q100J | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16TSSOP | 100% | View |
| 74HCT109D,653 | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 100% | View |
| 74HCT109PW,118 | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16TSSOP | 100% | View |
| 74HCT109DB,118 | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16SSOP | 100% | View |
| CD74HCT109M96 | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16SOIC | 92% | View |
| CD74HC112M | Harris Corporation | IC FF JK TYPE DUAL 1BIT 16SOIC | 83% | View |
Submit your RFQ for 74HCT109D,652 and get a quote within 24 hours.
