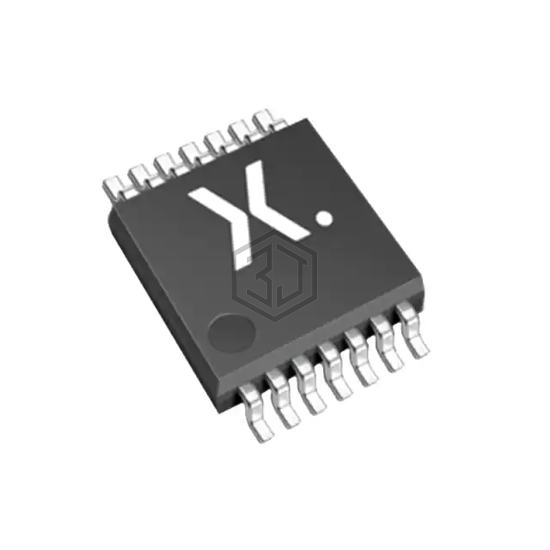

IC GATE OR 3CH 3-INP 14TSSOP
74HC4075PWJ is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE OR 3CH 3-INP 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-TSSOP (0.173", 4.40mm Width).
In Stock: 9,309
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | OR Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
74HC4075PWJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD74HC4075M | Texas Instruments | IC GATE OR 3CH 3-INP 14SOIC | 100% | View |
| MC74HC4075FR1 | Motorola | IC GATE OR 3CH 3-INP SOEIAJ-14 | 100% | View |
| 74HC32D,653 | Nexperia USA Inc. | IC GATE OR 4CH 2-INP 14SO | 94% | View |
| 74HC32D/S400118 | NXP USA Inc. | IC GATE OR 4CH 2-INP 14SO | 94% | View |
| 74HC32D/C118 | NXP USA Inc. | IC GATE OR 4CH 2-INP 14SO | 94% | View |
| CD74HC32MT | Texas Instruments | IC GATE OR 4CH 2-INP 14SOIC | 94% | View |
Submit your RFQ for 74HC4075PWJ and get a quote within 24 hours.
