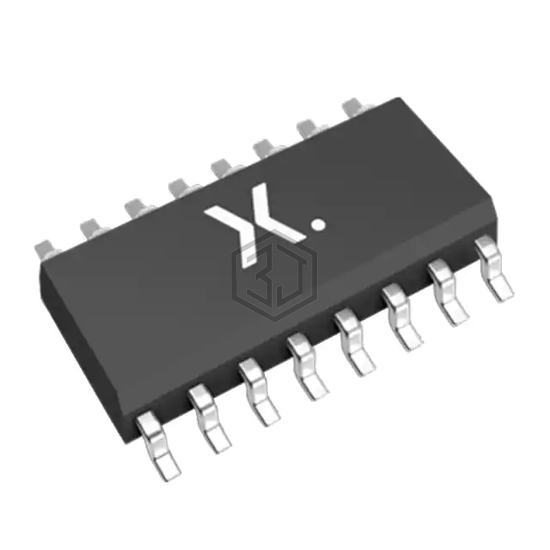

IC MUX/DEMUX DUAL 4X1 16SOIC
74HC4052D,652 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC MUX/DEMUX DUAL 4X1 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-SOIC (0.154", 3.90mm Width), number of circuits 2.
In Stock: 8,319
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 10V |
| Voltage - Supply, Dual (V±) | ±1.5V ~ 5V |
| Switch Time (Ton, Toff) (Max) | 58ns, 48ns |
| -3db Bandwidth | 180MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 2µA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
74HC4052D,652 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HC4052BQ,115 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4X1 16DHVQFN | 100% | View |
| 74HC4052PW,118 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4X1 16TSSOP | 100% | View |
| 74HC4052D,653 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4X1 16SOIC | 100% | View |
| 74HC4052PW-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CH 16TSSOP | 100% | View |
| 74HC4052BQ-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CH 16DHVQFN | 100% | View |
| 74HC4052PW/AUJ | NXP USA Inc. | IC MUX/DEMUX DUAL 4X1 16TSSOP | 100% | View |
