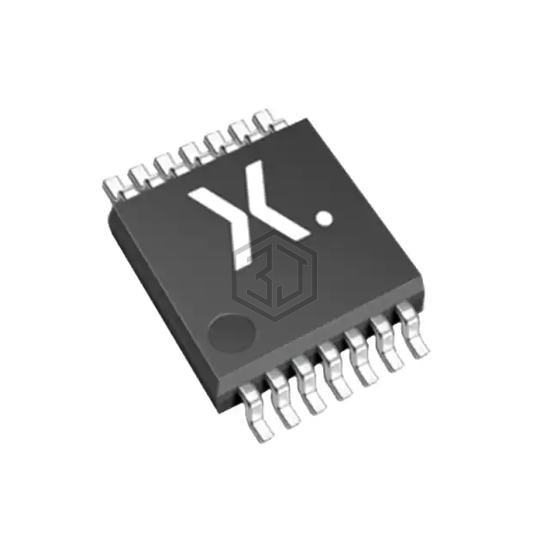

IC SWITCH QUAD SPST 14TSSOP
74HC4016PW,112 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH QUAD SPST 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 14-TSSOP (0.173", 4.40mm Width), number of circuits 4.
In Stock: 4,416
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 120Ohm |
| Channel-to-Channel Matching (ΔRon) | 9Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 10V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 28ns, 22ns |
| -3db Bandwidth | 160MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
74HC4016PW,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HC4016D/AUJ | NXP USA Inc. | IC SWITCH QUAD SPST 14SOIC | 100% | View |
| 74HC4066PW/AUJ | NXP USA Inc. | IC MUX/DEMUX 16CH ANLG 14TSSOP | 93% | View |
| RS2102XN | Runic Technology | IC SWITCH DUAL SPDT 10MSOP | 72% | View |
| 74HCT1G66GW-Q100H | Nexperia USA Inc. | IC ANLG SWITCH SPST 5TSSOP | 67% | View |
| RS2101XC6 | Runic Technology | IC SWITCH SPDT SC70-6 | 67% | View |
| RS2057XC6 | Runic Technology | IC SWITCH SPDT SC70-6 | 65% | View |
Submit your RFQ for 74HC4016PW,112 and get a quote within 24 hours.
