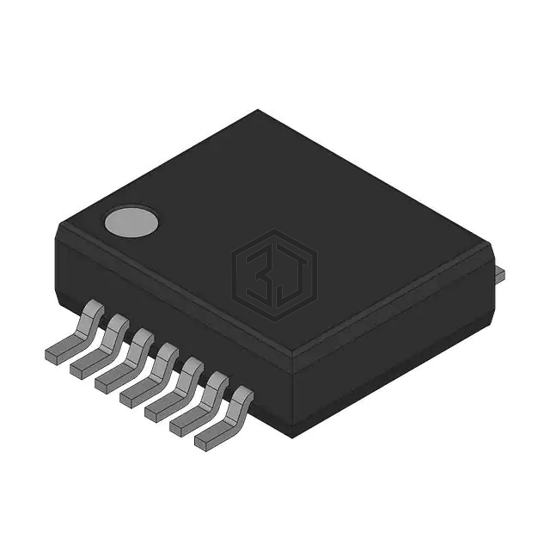

IC GATE NAND 2CH 4-INP 14SSOP
74HC20DB118 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 2CH 4-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 4,486
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD74HC00MS2074 | Harris Corporation | IC GATE NAND 4CH 2-INP 14SOIC | 91% | View |
| 74HC30D-Q100J | Nexperia USA Inc. | IC GATE NAND 1CH 8-INP 14SO | 85% | View |
| CD74HC30PWR | Texas Instruments | IC GATE NAND 1CH 8-INP 14TSSOP | 85% | View |
| CD74HC132M | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 83% | View |
| M74HC132YTTR | STMicroelectronics | IC GATE NAND 4CH 2-INP 14TSSOP | 81% | View |
| SN74HC133D | Rochester Electronics, LLC | IC GATE NAND 1CH 13-INP 16SO | 78% | View |
Submit your RFQ for 74HC20DB118 and get a quote within 24 hours.
