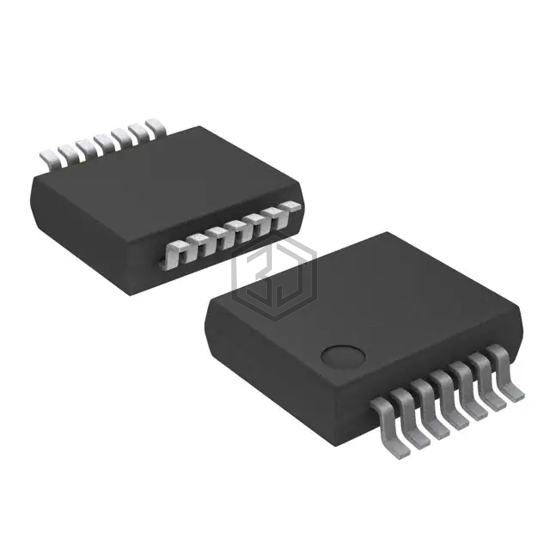

IC GATE NAND 2CH 4-INP 14SSOP
74HC20DB,112 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 2CH 4-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 5,990
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
74HC20DB,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74HC20FL1 | onsemi | IC GATE NAND 2CH 4-INP SOEIAJ-14 | 96% | View |
| SN74HC10QPWRG4Q1 | Texas Instruments | IC GATE NAND 3CH 3-INP 14TSSOP | 95% | View |
| CD74HC00M96 | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 91% | View |
| CD74HC30NSR | Texas Instruments | IC GATE NAND 1CH 8-INP 14SOP | 85% | View |
| SN74HC132QDRG4Q1 | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 83% | View |
| SN74HC132QPWRG4Q1 | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 83% | View |
Submit your RFQ for 74HC20DB,112 and get a quote within 24 hours.
