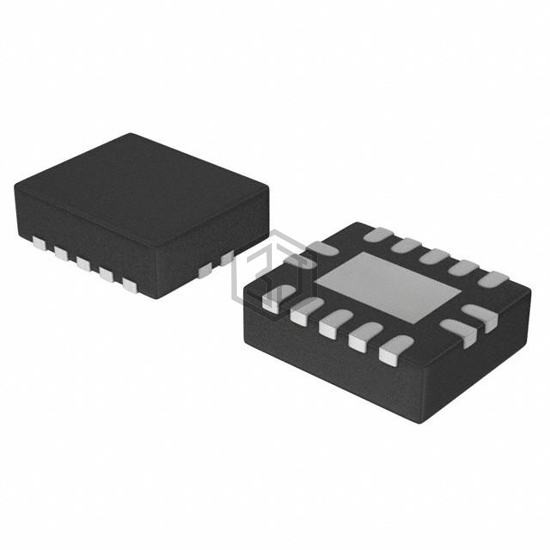

IC GATE NAND 4CH 2-INP 14DHVQFN
74HC132BQX is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 4CH 2-INP 14DHVQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-VFQFN Exposed Pad.
In Stock: 4,863
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DHVQFN (2.5x3) |
| Package / Case | 14-VFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HC00QPWRQ1 | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 90% | View |
| NLV74HC00ADTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 90% | View |
| 74HC10PW-Q100J | Nexperia USA Inc. | IC GATE NAND 3CH 3-INP 14TSSOP | 87% | View |
| 74HC10D/S400118 | NXP USA Inc. | IC GATE NAND 3CH 3-INP 14SO | 87% | View |
| MC74HC00ADTEL | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 84% | View |
| MC74HC00ADT | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 84% | View |
Submit your RFQ for 74HC132BQX and get a quote within 24 hours.
