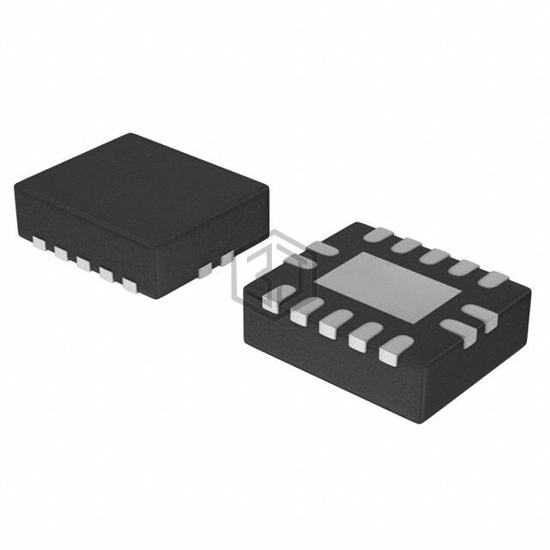

IC GATE NAND 4CH 2-INP 14DHVQFN
74HC132BQ-Q100X is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 4CH 2-INP 14DHVQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-VFQFN Exposed Pad.
In Stock: 2,659
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.1V ~ 0.26V |
| Logic Level - High | 2V ~ 5.81V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-DHVQFN (2.5x3) |
| Package / Case | 14-VFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HC132QPWRQ1 | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 91% | View |
| MM74HCT00MTC | Fairchild Semiconductor | IC GATE NAND 4CH 2-INP 14TSSOP | 89% | View |
| MC74HC132ADG | onsemi | IC GATE NAND 4CH 2-INP 14SOIC | 87% | View |
| 74HC20D/C118 | NXP USA Inc. | IC GATE NAND 2CH 4-INP 14SO | 74% | View |
| MC74HC30ADR2G | onsemi | IC GATE NAND 1CH 8-INP 14SOIC | 65% | View |
| 74HC00D653 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 61% | View |
Submit your RFQ for 74HC132BQ-Q100X and get a quote within 24 hours.
