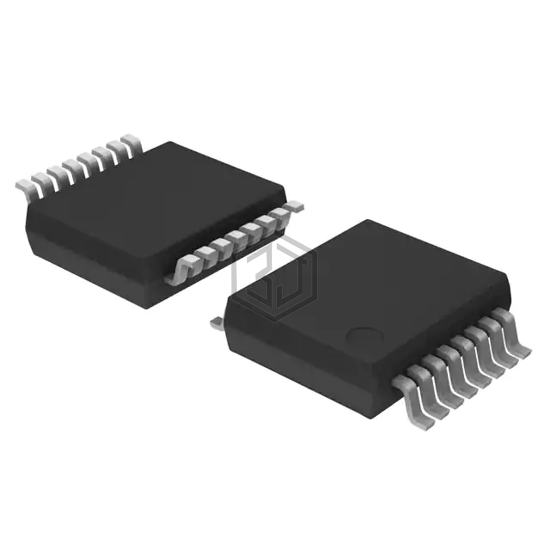

IC FF JK TYPE DUAL 1BIT 16SSOP
74HC109DB,112 is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF JK TYPE DUAL 1BIT 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 16-SSOP (0.209", 5.30mm Width).
In Stock: 2,276
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 81 MHz |
| Max Propagation Delay @ V, Max CL | 30ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 3.5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SSOP |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
74HC109DB,112 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HC109D,653 | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 100% | View |
| 74HC109D,652 | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 100% | View |
| 74HC109DB,118 | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16SSOP | 100% | View |
| 74HC109D/AUJ | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 100% | View |
| 74HCT109D-Q100J | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 94% | View |
| 74HC109D-Q100J | Nexperia USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 92% | View |
Submit your RFQ for 74HC109DB,112 and get a quote within 24 hours.
