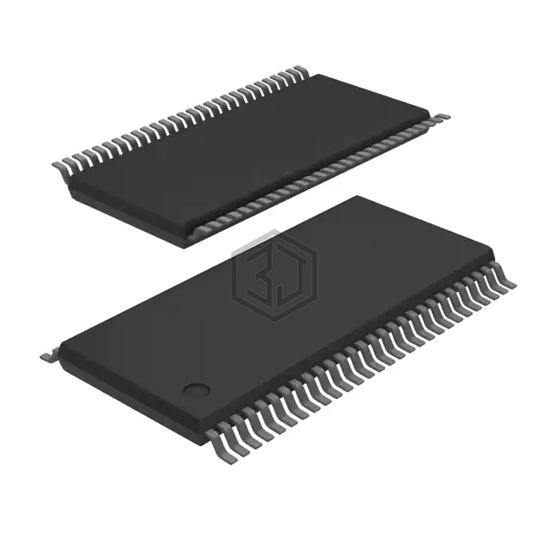

IC FF D-TYPE DUAL 10BIT 56TSSOP
74ALVT16821DGGS is a Logic - Flip Flops manufactured by Nexperia USA Inc.. IC FF D-TYPE DUAL 10BIT 56TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.3V ~ 2.7V, 3V ~ 3.6V, package / case 56-TFSOP (0.240", 6.10mm Width).
In Stock: 5,896
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 2 |
| Number of Bits per Element | 10 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 3.2ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 8mA, 24mA; 32mA, 64mA |
| Voltage - Supply | 2.3V ~ 2.7V, 3V ~ 3.6V |
| Current - Quiescent (Iq) | 70 µA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-TSSOP |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
74ALVT16821DGGS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVTH574GQNR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20BGA | 75% | View |
| PI74ALVCH16721A | Diodes Incorporated | IC FF D-TYPE SNGL 20BIT 56TSSOP | 72% | View |
| SN74LVCH16374ADLR | Texas Instruments | IC FF D-TYPE DUAL 8BIT 48SSOP | 70% | View |
| 74VHCT574AFT | Toshiba Semiconductor and Storage | IC FF D-TYPE SNGL 8BIT 20TSSOP | 64% | View |
| 74LCX574SJX | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 20SOP | 55% | View |
| 74LCX374SJ | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 20SOP | 55% | View |
Submit your RFQ for 74ALVT16821DGGS and get a quote within 24 hours.
