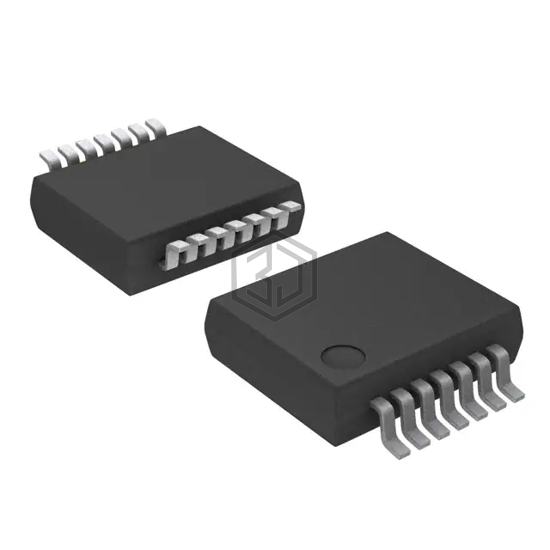

IC GATE NAND 2CH 4-INP 14SSOP
74ABT20DB,118 is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 2CH 4-INP 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 6,717
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 50 µA |
| Current - Output High, Low | 15mA, 20mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 3.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
74ABT20DB,118 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74ABT20PW,118 | Nexperia USA Inc. | IC GATE NAND 2CH 4-INP 14TSSOP | 100% | View |
| 74ABT20D,112 | Nexperia USA Inc. | IC GATE NAND 2CH 4-INP 14SO | 100% | View |
| 74ABT20PW,112 | Nexperia USA Inc. | IC GATE NAND 2CH 4-INP 14TSSOP | 100% | View |
| 74ABT20D,118 | Nexperia USA Inc. | IC GATE NAND 2CH 4-INP 14SO | 100% | View |
| 74ABT00PW,118 | NXP USA Inc. | IC GATE NAND 4CH 2-INP 14TSSOP | 90% | View |
| 74ABT00D,112 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 90% | View |
Submit your RFQ for 74ABT20DB,118 and get a quote within 24 hours.
