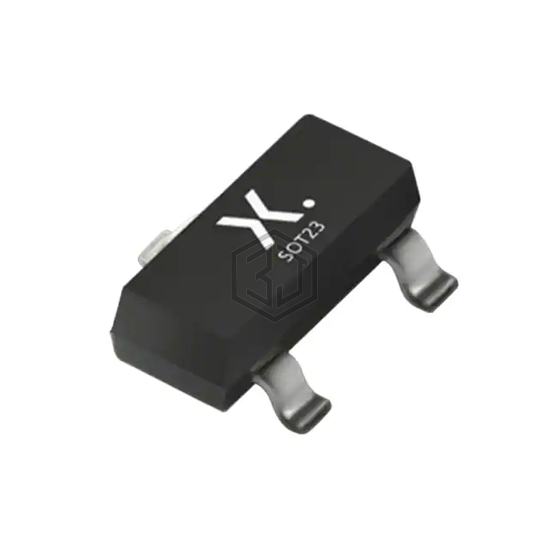

2N7002H/SOT23/TO-236AB
2N7002HR is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. 2N7002H/SOT23/TO-236AB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 300mA (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 830mW (Tc) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-236AB |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for 2N7002HR and get a quote within 24 hours.
