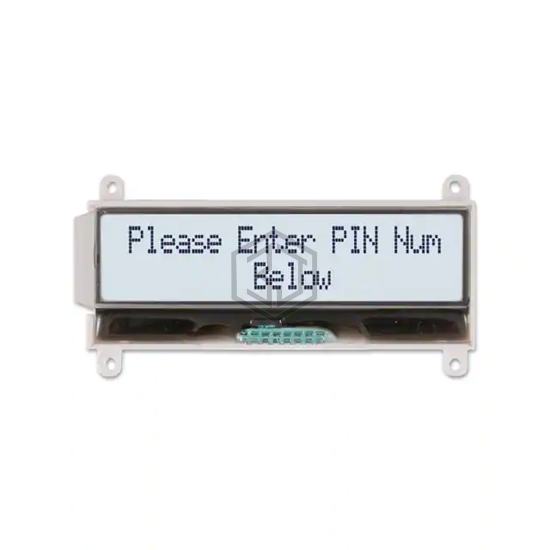

LCD MOD 40DIG 20X2 TRANSFLCT WHT
NHD-C0220BIZ-FSW-FBW-3V3M is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 40DIG 20X2 TRANSFLCT WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 2.7V ~ 3.5V, interface I²C, display type FSTN - Film Super-Twisted Nematic.
In Stock: 2,777
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.55mm H x 2.45mm W |
| Outline L x W x H | 75.70mm x 27.10mm x 6.80mm |
| Viewing Area | 61.00mm L x 15.10mm W |
| Backlight | LED - White |
| Voltage - Supply | 2.7V ~ 3.5V |
| Dot Size | 0.45mm W x 0.65mm H |
| Interface | I²C |
| Controller Type | ST7036 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | White |
Submit your RFQ for NHD-C0220BIZ-FSW-FBW-3V3M and get a quote within 24 hours.
