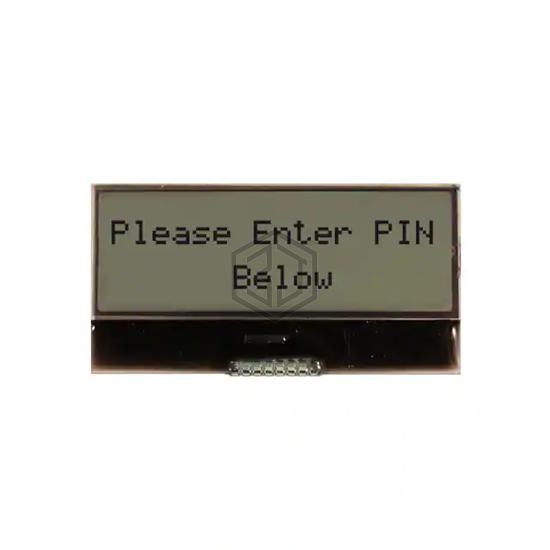

LCD MOD 32DIG 16X2 TRANSFLECTIVE
NHD-C0216CIZ-FN-FBW-3V is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 32DIG 16X2 TRANSFLECTIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 2.7V ~ 3.3V, interface I²C, display type FSTN - Film Super-Twisted Nematic.
In Stock: 7,007
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.68mm H x 2.21mm W |
| Outline L x W x H | 49.70mm x 25.30mm x 2.10mm |
| Viewing Area | 45.70mm L x 14.30mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 2.7V ~ 3.3V |
| Dot Size | 0.41mm W x 0.55mm H |
| Interface | I²C |
| Controller Type | AiP31032 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | Gray |
Submit your RFQ for NHD-C0216CIZ-FN-FBW-3V and get a quote within 24 hours.
