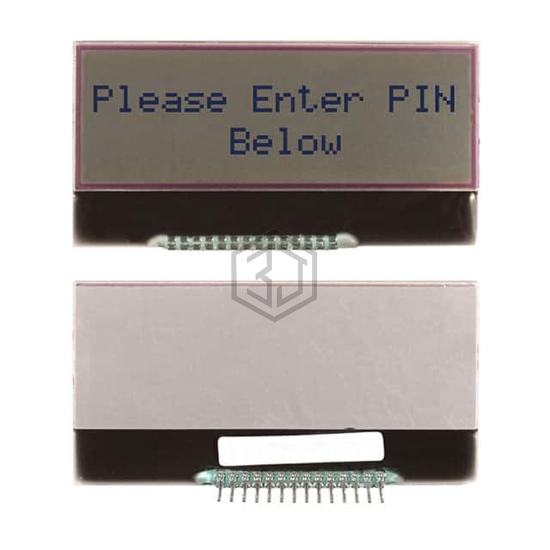

LCD MOD 32DIG 16X2 TRANSFLECTIVE
NHD-C0216AZ-FN-GBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 32DIG 16X2 TRANSFLECTIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 2,354
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.68mm H x 2.21mm W |
| Outline L x W x H | 49.70mm x 25.30mm x 2.10mm |
| Viewing Area | 45.70mm L x 14.30mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.41mm W x 0.55mm H |
| Interface | Parallel |
| Controller Type | NT-7605 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Gray |
Submit your RFQ for NHD-C0216AZ-FN-GBW and get a quote within 24 hours.
