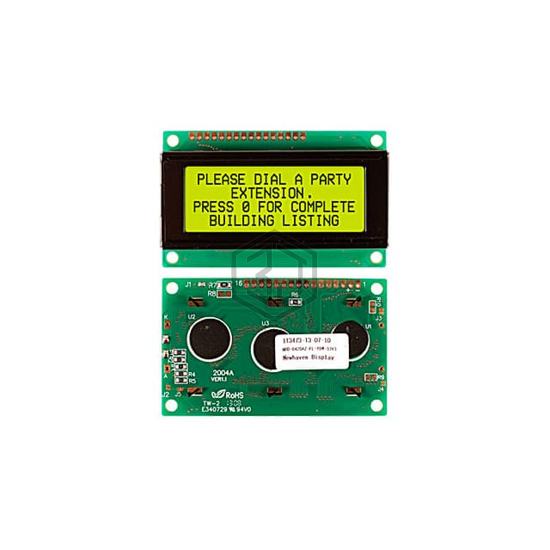

LCD MOD 80DIG 20X4 TRANS YLW/GRN
NHD-0420AZ-FL-YBW-33V3 is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 80DIG 20X4 TRANS YLW/GRN. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3.1V ~ 3.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 3,366
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.03mm H x 2.30mm W |
| Outline L x W x H | 77.00mm x 47.00mm x 14.50mm |
| Viewing Area | 60.00mm L x 22.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 3.1V ~ 3.5V |
| Dot Size | 0.42mm W x 0.46mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Gray |
| Background Color | Green |
Submit your RFQ for NHD-0420AZ-FL-YBW-33V3 and get a quote within 24 hours.
