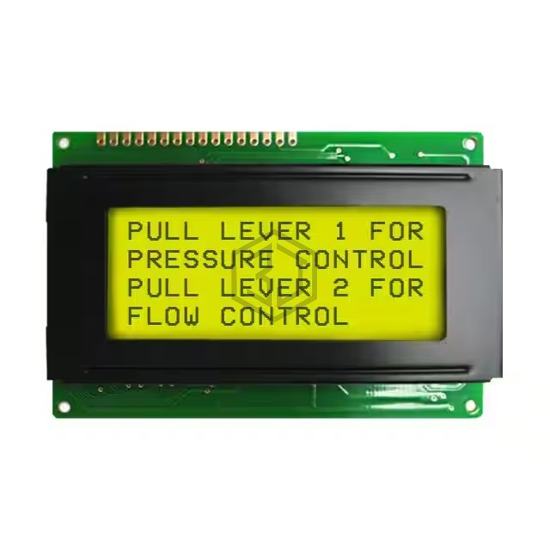

LCD MOD 64DIG 16X4 TRANS YLW/GRN
NHD-0416BZ-FL-YBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 64DIG 16X4 TRANS YLW/GRN. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 2,868
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 64 |
| Display Format | 16 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.95mm W |
| Outline L x W x H | 87.00mm x 60.00mm x 14.50mm |
| Viewing Area | 61.80mm L x 25.20mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Green |
Submit your RFQ for NHD-0416BZ-FL-YBW and get a quote within 24 hours.
