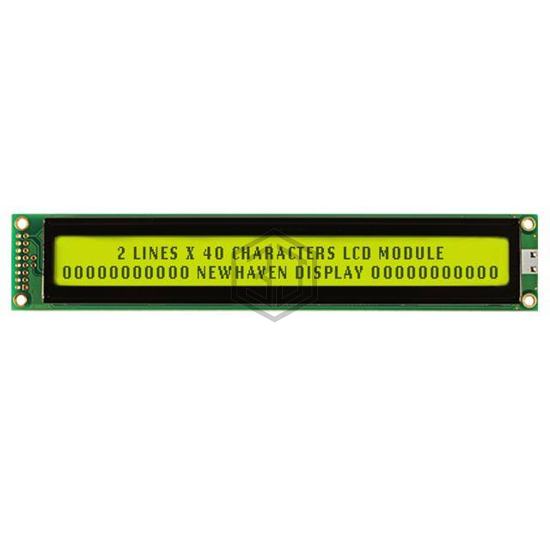

LCD MOD 80DIG 40X2 TRANS YLW/GRN
NHD-0240AZ-FL-YBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 80DIG 40X2 TRANS YLW/GRN. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 40 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.55mm H x 3.20mm W |
| Outline L x W x H | 182.00mm x 33.50mm x 13.50mm |
| Viewing Area | 152.50mm L x 16.50mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.60mm W x 0.65mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Green |
Submit your RFQ for NHD-0240AZ-FL-YBW and get a quote within 24 hours.
