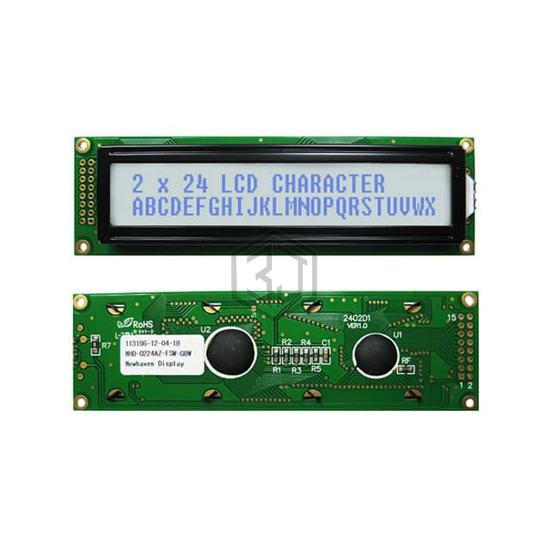

LCD MOD 48DIG 24X2 TRANSFLCT WHT
NHD-0224AZ-FSW-GBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 48DIG 24X2 TRANSFLCT WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 361
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 48 |
| Display Format | 24 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.55mm H x 3.20mm W |
| Outline L x W x H | 118.00mm x 36.00mm x 12.50mm |
| Viewing Area | 94.50mm L x 18.00mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.60mm W x 0.65mm H |
| Interface | Parallel |
| Controller Type | KS0066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | White |
Submit your RFQ for NHD-0224AZ-FSW-GBW and get a quote within 24 hours.
