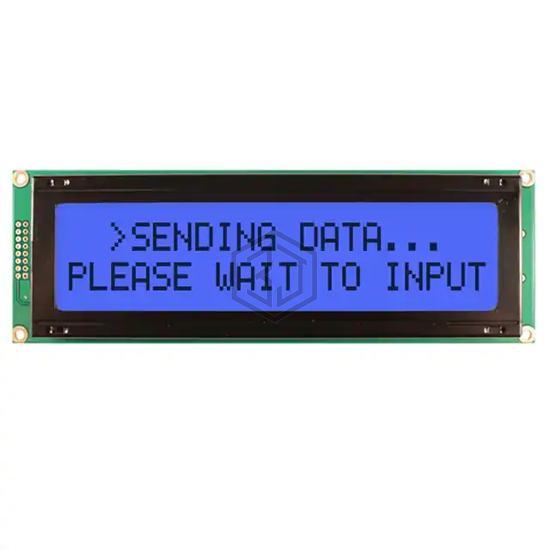

LCD MOD 40DIG 20X2 TRANSFLCT BLU
NHD-0220JZ-FSB-GBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 40DIG 20X2 TRANSFLCT BLU. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 1,431
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 12.70mm H x 5.90mm W |
| Outline L x W x H | 182.00mm x 60.00mm x 14.00mm |
| Viewing Area | 147.00mm L x 35.20mm W |
| Backlight | LED - Blue |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 1.10mm W x 1.50mm H |
| Interface | Parallel |
| Controller Type | S6A0069 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Blue |
