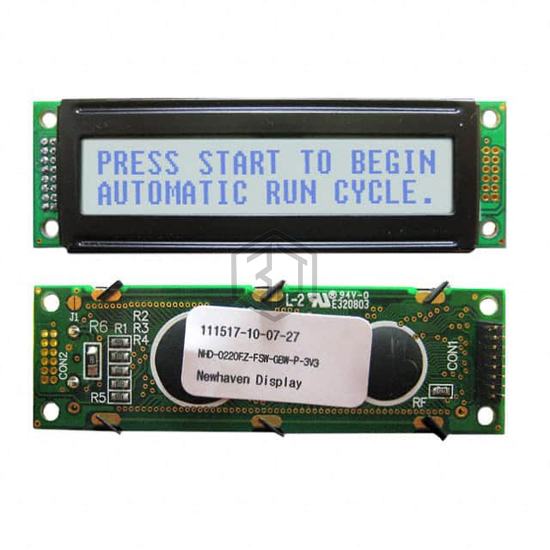

LCD MOD 40DIG 20X2 TRANSFLCT WHT
NHD-0220FZ-FSW-GBW-P-3V3 is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 40DIG 20X2 TRANSFLCT WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3V ~ 3.3V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 9,034
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 3.23mm H x 1.85mm W |
| Outline L x W x H | 65.00mm x 20.00mm x 8.00mm |
| Viewing Area | 46.00mm L x 10.80mm W |
| Backlight | LED - White |
| Voltage - Supply | 3V ~ 3.3V |
| Dot Size | 0.33mm W x 0.36mm H |
| Interface | Parallel |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Gray |
| Background Color | White |
Submit your RFQ for NHD-0220FZ-FSW-GBW-P-3V3 and get a quote within 24 hours.
