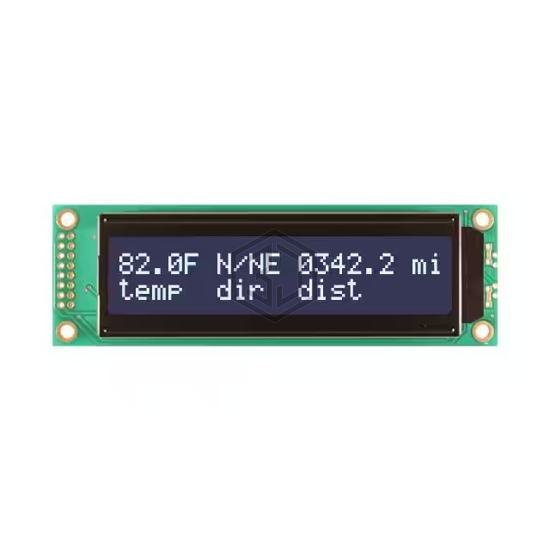

LCD MOD 40DIG 20X2 TRANSMISV WHT
NHD-0220DZ-NSW-FBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 40DIG 20X2 TRANSMISV WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, display type FSTN - Film Super-Twisted Nematic.
In Stock: 7,079
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transmissive |
| Character Size | 5.95mm H x 3.20mm W |
| Outline L x W x H | 116.00mm x 37.00mm x 13.50mm |
| Viewing Area | 83.00mm L x 18.60mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 0.60mm W x 0.65mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | White |
| Background Color | Blue |
Submit your RFQ for NHD-0220DZ-NSW-FBW and get a quote within 24 hours.
