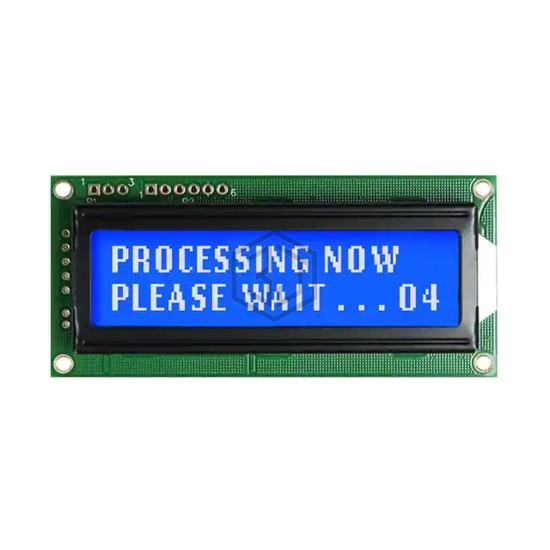

LCD MOD 32DIG 16X2 TRANSMISV WHT
NHD-0216K3Z-NSW-BBW-V3 is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 32DIG 16X2 TRANSMISV WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface I²C, RS-232, SPI, display type STN - Super-Twisted Nematic.
In Stock: 766
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Character Size | 5.23mm H x 3.00mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm |
| Viewing Area | 64.50mm L x 16.40mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.56mm W x 0.61mm H |
| Interface | I²C, RS-232, SPI |
| Controller Type | PIC16F694 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | White |
| Background Color | Blue |
Submit your RFQ for NHD-0216K3Z-NSW-BBW-V3 and get a quote within 24 hours.
