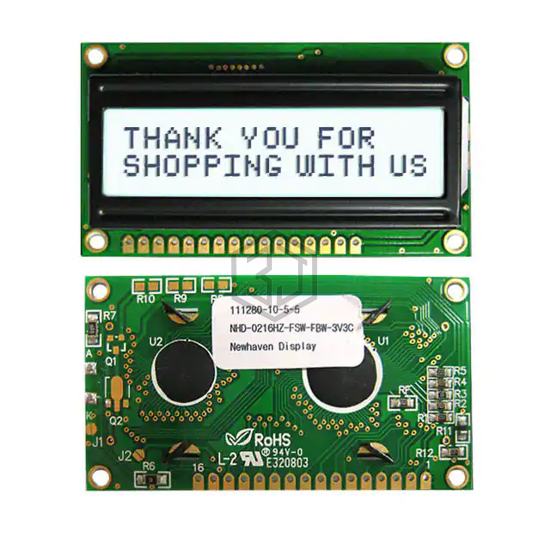

LCD MOD 32DIG 16X2 TRANSFLCT WHT
NHD-0216HZ-FSW-FBW-3V3C is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 32DIG 16X2 TRANSFLCT WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 2.7V ~ 3.3V, interface Parallel, display type FSTN - Film Super-Twisted Nematic.
In Stock: 4,524
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.99mm H x 2.55mm W |
| Outline L x W x H | 65.50mm x 36.70mm x 13.50mm |
| Viewing Area | 54.00mm L x 14.40mm W |
| Backlight | LED - White |
| Voltage - Supply | 2.7V ~ 3.3V |
| Dot Size | 0.47mm W x 0.58mm H |
| Interface | Parallel |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Gray |
| Background Color | White |
Submit your RFQ for NHD-0216HZ-FSW-FBW-3V3C and get a quote within 24 hours.
