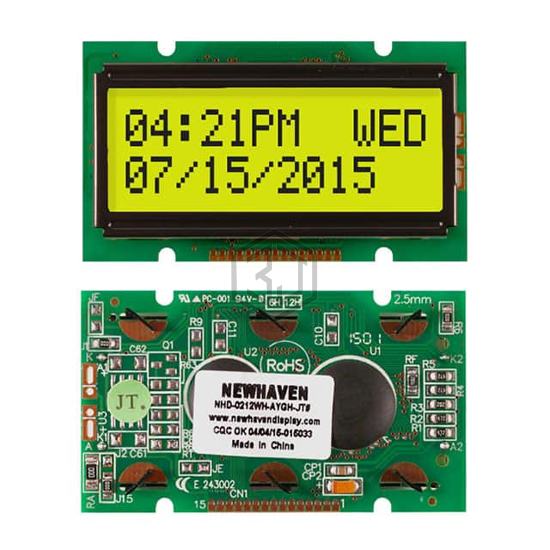

LCD MOD 24DIG 12X2 TRANS YLW/GRN
NHD-0212WH-AYGH-JT# is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 24DIG 12X2 TRANS YLW/GRN. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 24 |
| Display Format | 12 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.50mm H x 2.65mm W |
| Outline L x W x H | 55.70mm x 32.00mm x 9.70mm |
| Viewing Area | 46.00mm L x 14.50mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 0.45mm W x 0.60mm H |
| Interface | Parallel |
| Controller Type | ST7066 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Green |
