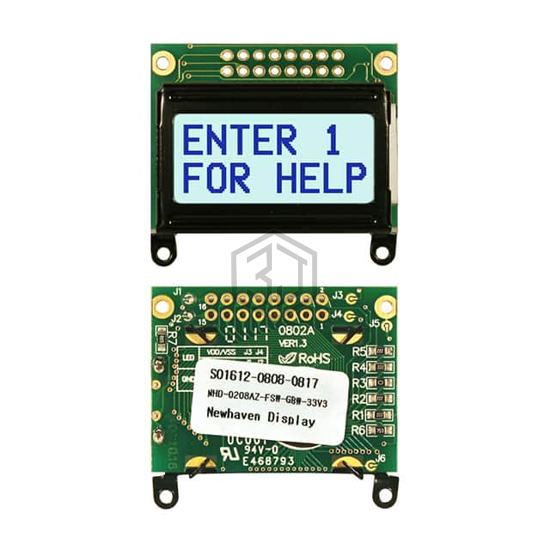

LCD MOD 16DIG 8X2 TRANSFLECT WHT
NHD-0208AZ-FSW-GBW-33V3 is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 16DIG 8X2 TRANSFLECT WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3.3V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 2,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 16 |
| Display Format | 8 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.95mm W |
| Outline L x W x H | 40.00mm x 35.40mm x 13.50mm |
| Viewing Area | 30.40mm L x 13.90mm W |
| Backlight | LED - White |
| Voltage - Supply | 3.3V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Gray |
Submit your RFQ for NHD-0208AZ-FSW-GBW-33V3 and get a quote within 24 hours.
