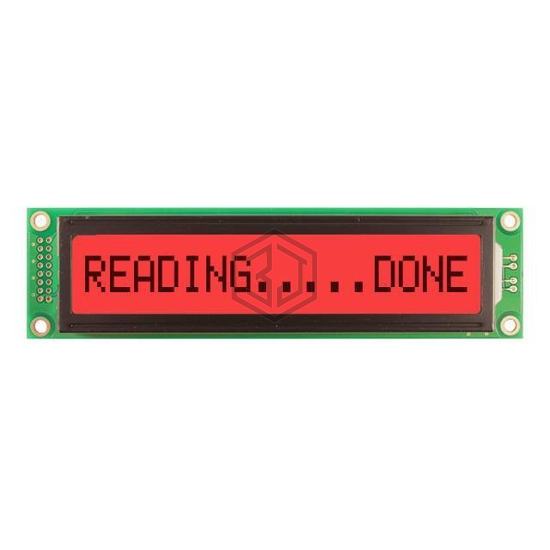

LCD MOD 16DIG 16X1 TRANSFLCT RED
NHD-0116GZ-FSR-FBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 16DIG 16X1 TRANSFLCT RED. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type FSTN - Film Super-Twisted Nematic.
In Stock: 7,927
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 16 |
| Display Format | 16 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 14.54mm H x 6.00mm W |
| Outline L x W x H | 151.00mm x 40.00mm x 13.00mm |
| Viewing Area | 120.00mm L x 23.00mm W |
| Backlight | LED - Red |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 1.15mm W x 1.77mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | Red |
Submit your RFQ for NHD-0116GZ-FSR-FBW and get a quote within 24 hours.
