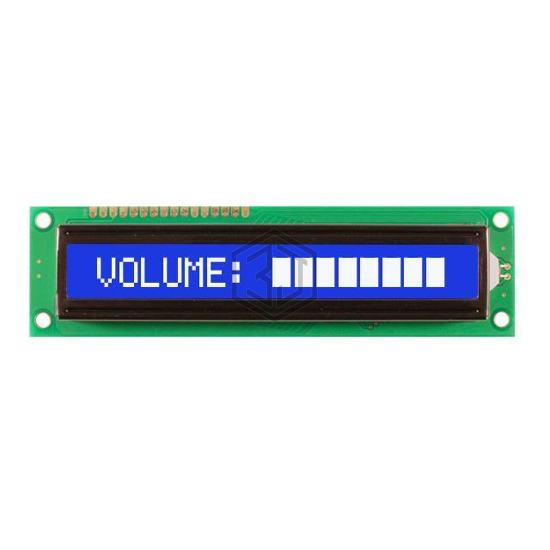

LCD MOD 16DIG 16X1 TRANSMISV WHT
NHD-0116DZ-NSW-BBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 16DIG 16X1 TRANSMISV WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 16 |
| Display Format | 16 x 1 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Character Size | 9.66mm H x 4.84mm W |
| Outline L x W x H | 122.00mm x 33.00mm x 14.00mm |
| Viewing Area | 99.00mm L x 13.00mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.92mm W x 1.10mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | White |
| Background Color | Blue |
Submit your RFQ for NHD-0116DZ-NSW-BBW and get a quote within 24 hours.
