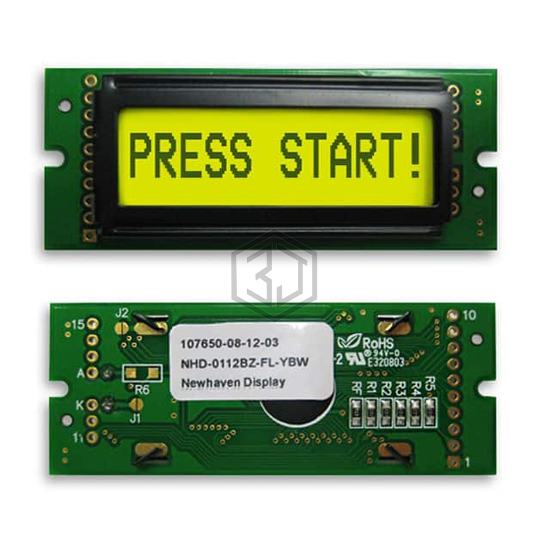

LCD MOD 12DIG 12X1 TRANS YLW/GRN
NHD-0112BZ-FL-YBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 12DIG 12X1 TRANS YLW/GRN. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 1,276
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 12 |
| Display Format | 12 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.00mm H x 2.70mm W |
| Outline L x W x H | 69.00mm x 27.00mm x 13.00mm |
| Viewing Area | 45.20mm L x 13.80mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.50mm W x 0.75mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Green |
Submit your RFQ for NHD-0112BZ-FL-YBW and get a quote within 24 hours.
