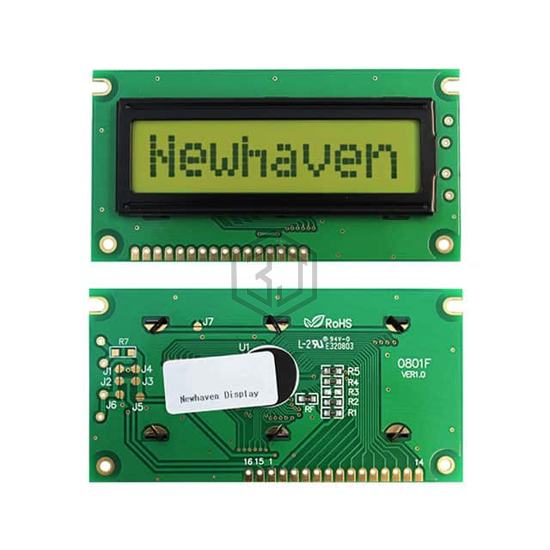

LCD MOD 8 DIG 8 X 1 REFLECTIVE
NHD-0108FZ-RN-YBW is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 8 DIG 8 X 1 REFLECTIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 6,385
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 8 |
| Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Character Size | 10.80mm H x 6.50mm W |
| Outline L x W x H | 84.00mm x 44.00mm x 9.00mm |
| Viewing Area | 64.50mm L x 16.40mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 5V |
| Dot Size | 1.30mm W x 1.30mm H |
| Interface | Parallel |
| Controller Type | SPLC780D OR ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | Green |
Submit your RFQ for NHD-0108FZ-RN-YBW and get a quote within 24 hours.
