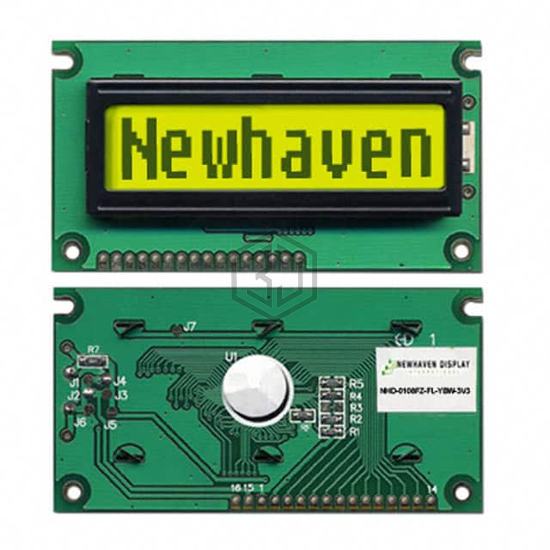

LCD MOD 8DIG 8X1 TRANSFL YLW/GRN
NHD-0108FZ-FL-YBW-3V3 is a Display Modules - LCD, OLED Character and Numeric manufactured by Newhaven Display Intl. LCD MOD 8DIG 8X1 TRANSFL YLW/GRN. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 2.7V ~ 3.3V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 8,116
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 8 |
| Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 10.75mm H x 6.45mm W |
| Outline L x W x H | 84.00mm x 44.00mm x 13.50mm |
| Viewing Area | 64.50mm L x 16.40mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 2.7V ~ 3.3V |
| Dot Size | 1.25mm W x 1.30mm H |
| Interface | Parallel |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Gray |
| Background Color | Green |
Submit your RFQ for NHD-0108FZ-FL-YBW-3V3 and get a quote within 24 hours.
