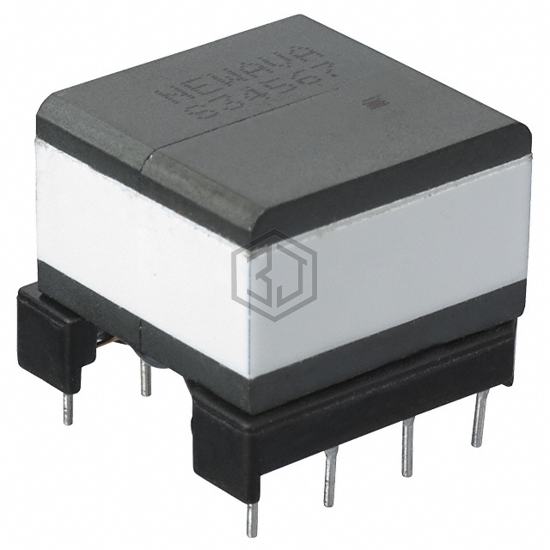

FIXED IND 47UH 3.7A 40 MOHM TH
S34567 is a Fixed Inductors manufactured by Newava Technology Inc.. FIXED IND 47UH 3.7A 40 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -45°C ~ 250°C, package / case Radial, Horizontal, 8 Leads, current rating (amps) 3.7 A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 47 µH |
| Tolerance | - |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 2MHz |
| Ratings | - |
| Operating Temperature | -45°C ~ 250°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 8 Leads |
| Supplier Device Package | - |
| Size / Dimension | 0.850" L x 0.790" W (21.59mm x 20.07mm) |
| Height - Seated (Max) | 0.638" (16.20mm) |
Submit your RFQ for S34567 and get a quote within 24 hours.
