DC DC CONVERTER 3-6V

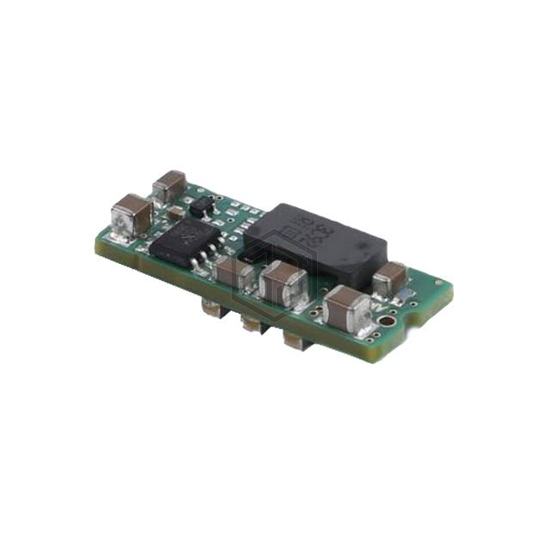

NBS2000N04S05 is a DC DC Converters manufactured by NetPower. DC DC CONVERTER 3-6V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, current - output (max) 3.5A, size / dimension 1.10" L x 0.45" W x 0.25" H (27.9mm x 11.4mm x 6.4mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.5A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 86% |
| Mounting Type | Surface Mount |
| Package / Case | - |
| Size / Dimension | 1.10" L x 0.45" W x 0.25" H (27.9mm x 11.4mm x 6.4mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | cURus |
| Standard Number | - |
Submit your RFQ for NBS2000N04S05 and get a quote within 24 hours.
