90-305VAC, 240W CC/CP LED DRIVER

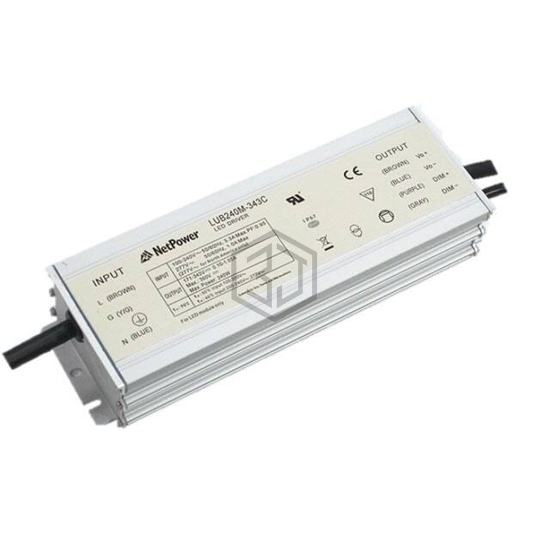

LUB240M-343C is a LED Drivers manufactured by NetPower. 90-305VAC, 240W CC/CP LED DRIVER. Key specifications: operating temperature -40°C ~ 90°C, voltage - output 171 ~ 343V, current - output (max) 1.05A, size / dimension 8.21" L x 2.68" W x 1.54" H (208.6mm x 68.0mm x 39.0mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 171 ~ 343V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 240 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | Analog, PWM |
| Features | OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 90°C |
| Efficiency | 93.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.21" L x 2.68" W x 1.54" H (208.6mm x 68.0mm x 39.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
