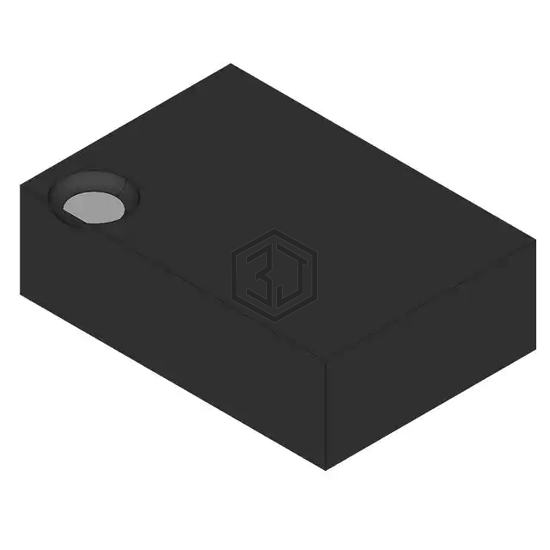

IC REG LINEAR 2.5V 1A 6WSON
LP38690SDX-2.5 is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LINEAR 2.5V 1A 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WDFN Exposed Pad, current - supply (max) 100 µA.
In Stock: 4,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP38690SDX-3.3/NOPB | Texas Instruments | IC REG LINEAR 3.3V 1A 6WSON | 89% | View |
| LP38692MP-1.8 | National Semiconductor | IC REG LINEAR 1.8V 1A SOT223 | 88% | View |
| LP38693MP-2.5/NOPB | Texas Instruments | IC REG LIN 2.5V 500MA SOT223-5 | 86% | View |
| LP38691DTX-1.8/NOPB | Texas Instruments | IC REG LINEAR 1.8V 500MA TO252-3 | 76% | View |
| LP38691QSD-3.3/NOPB | Texas Instruments | IC REG LINEAR 3.3V 500MA 6WSON | 75% | View |
| LP38691DTX-3.3/NOPB | Texas Instruments | IC REG LINEAR 3.3V 500MA TO252-3 | 75% | View |
Submit your RFQ for LP38690SDX-2.5 and get a quote within 24 hours.
