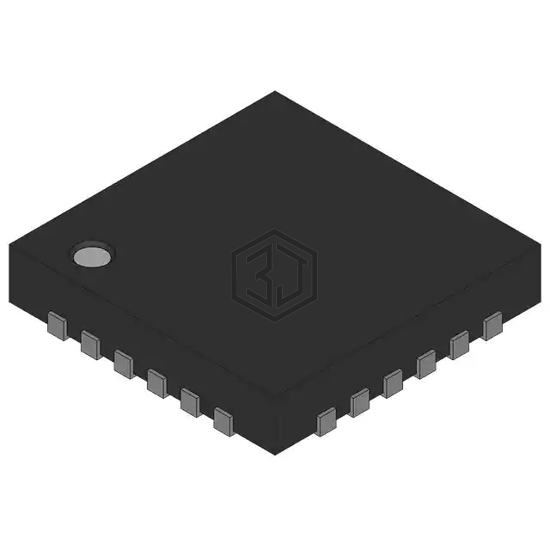

LM5035 PWM CONTROLLER WITH INTEG
LM5035SQ/NOPB is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by National Semiconductor. LM5035 PWM CONTROLLER WITH INTEG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 13V ~ 105V, package / case 24-WFQFN Exposed Pad.
In Stock: 47,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Half-Bridge |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 13V ~ 105V |
| Frequency - Switching | 200kHz, 500kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Frequency Control, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5035MHX/NOPB | Texas Instruments | IC REG CTRLR HALF-BRIDGE 20TSSOP | 100% | View |
| LM5039SQX/NOPB | Texas Instruments | IC REG CTRLR HALF-BRIDGE 24WQFN | 100% | View |
| LM5035AMH-1/NOPB | National Semiconductor | SWITCHING CONTROLLER, VOLTAGE-MO | 100% | View |
| LM5035CSQ/NOPB | Texas Instruments | IC REG CTRLR HALF-BRIDGE 24WQFN | 100% | View |
| LTC3803ES6#TRPBF | Analog Devices Inc. | IC REG CTRLR FLYBACK TSOT23-6 | 91% | View |
| LTC3803HS6-5#TRPBF | Analog Devices Inc. | IC REG CTRLR FLYBACK TSOT23-6 | 87% | View |
Submit your RFQ for LM5035SQ/NOPB and get a quote within 24 hours.
