SWITCHING REG, VOLTAGE-MODE, 0.3

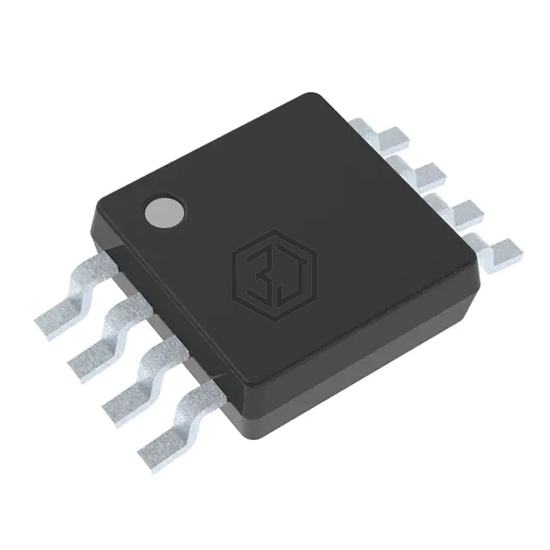

LM5009MMX is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. SWITCHING REG, VOLTAGE-MODE, 0.3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), current - output 150mA.
In Stock: 8,858
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9.5V |
| Voltage - Input (Max) | 95V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 85V |
| Current - Output | 150mA |
| Frequency - Switching | 600kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM1572MTCX-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 1.5A 16TSSOP | 51% | View |
| LM1572MTC-ADJ/NOPB | Texas Instruments | IC REG BUCK ADJ 1.5A 16TSSOP | 51% | View |
Submit your RFQ for LM5009MMX and get a quote within 24 hours.
