SWITCHING REG, CURRENT-MODE, 4.2

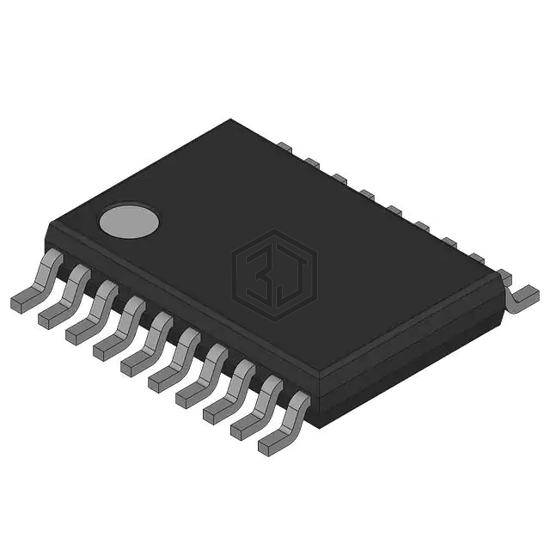

LM5005MH is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. SWITCHING REG, CURRENT-MODE, 4.2. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-PowerTSSOP (0.173", 4.40mm Width), current - output 2.5A.
In Stock: 2,632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 75V |
| Voltage - Output (Min/Fixed) | 1.225V |
| Voltage - Output (Max) | 70V |
| Current - Output | 2.5A |
| Frequency - Switching | 50kHz ~ 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5576MH | Texas Instruments | IC REG BUCK ADJ 3A 20HTSSOP | 95% | View |
| LM5575MH | Texas Instruments | IC REG BUCK ADJ 1.5A 16HTSSOP | 91% | View |
| LM5574Q0MT/NOPB | Texas Instruments | IC REG BUCK ADJ 500MA 16TSSOP | 85% | View |
| SM72485SD/NOPB | Texas Instruments | IC REG BUCK ADJ 150MA 8WSON | 60% | View |
| LM5009AMM/NOPB | Texas Instruments | IC REG BUCK ADJ 150MA 8VSSOP | 60% | View |
| SM72485MMX/NOPB | Texas Instruments | IC REG BUCK ADJ 150MA 8VSSOP | 60% | View |
Submit your RFQ for LM5005MH and get a quote within 24 hours.
