SWITCHING REG, VOLTAGE-MODE, 5.4

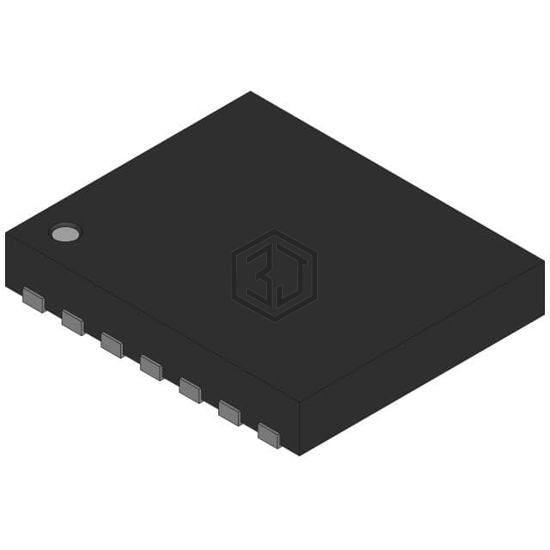

LM2676SD-12 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. SWITCHING REG, VOLTAGE-MODE, 5.4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 14-VDFN Exposed Pad, current - output 3A.
In Stock: 2,562
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Current - Output | 3A |
| Frequency - Switching | 260kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-VDFN Exposed Pad |
| Supplier Device Package | 14-VSON (5x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM2677SX-12/NOPB | Texas Instruments | IC REG BUCK 12V 5A TO263-7 | 94% | View |
| LM2676SD-5.0 | National Semiconductor | SWITCHING REG, VOLTAGE-MODE, 5.4 | 82% | View |
| LM2677SD-5.0/NOPB | Texas Instruments | IC REG BUCK 5V 5A 14VSON | 75% | View |
| LM2674MX-3.3/NOPB | Texas Instruments | IC REG BUCK 3.3V 500MA 8SOIC | 63% | View |
| LM2671M-5.0/NOPB | Texas Instruments | IC REG BUCK 5V 500MA 8SOIC | 63% | View |
| LM2672M-3.3-TI | Texas Instruments | SWITCHING REG, VOLTAGE-MODE, 2.2 | 63% | View |
Submit your RFQ for LM2676SD-12 and get a quote within 24 hours.
